DESCALING SYSTEM
Basis for Evertz Hydrotechnik descaling valves and descaling systems constitutes our basic valve program:
2/2 way cartridge valves
2/2 way built check valves
Check valve inserts (manual or motorized)
Storage completion valve inserts
3/2 way pilot valves
for the following standard operating conditions:
Media: Water, water-oil emulsions, synthetic oils, corrosive media, hydraulic oil, compressed air
Pressures: Standard 0 to 350 bar (max up to 800 bar)
Nominal sizes: DN3 to DN250
Temperatures: max. Operating temperature 0 to + 70 ° C; Max. Ambient temperature: 0 to + 60 ° C
Furthermore, a number individually to the particular application developed special valves available:
Pressure relief / pressure reducing valves
Proportional valves
pilot operated check valves
and much more
If you have a request outside of our standards, then we will develop a solution for you!
Descaling valve, for example, as
Single valve (switching valve)
Descaling valve unit (switching valve + check valve)

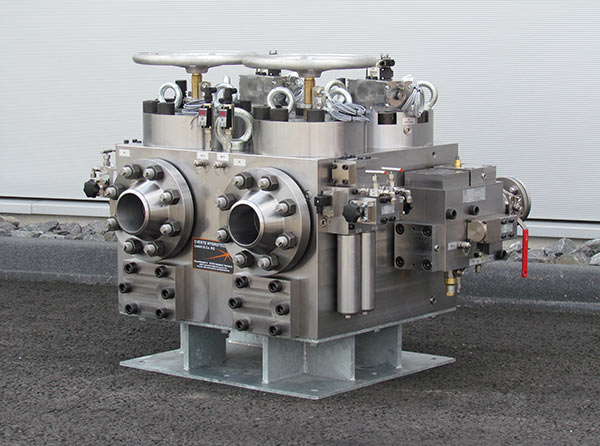

Descaling valve unit as a redundant system (see photo)

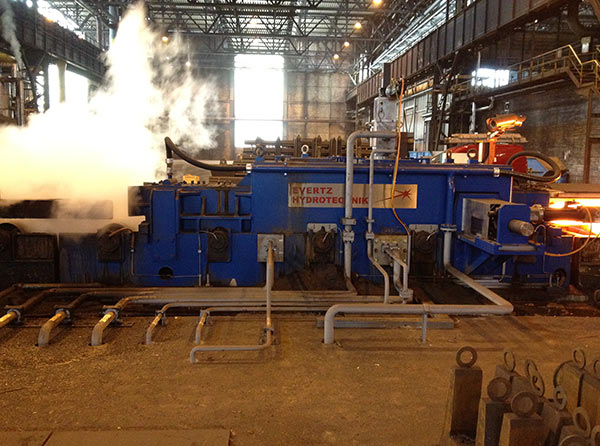

Descaling, e.g. incl.
Auto. Width adjustment for different billet widths
individually switchable nozzle

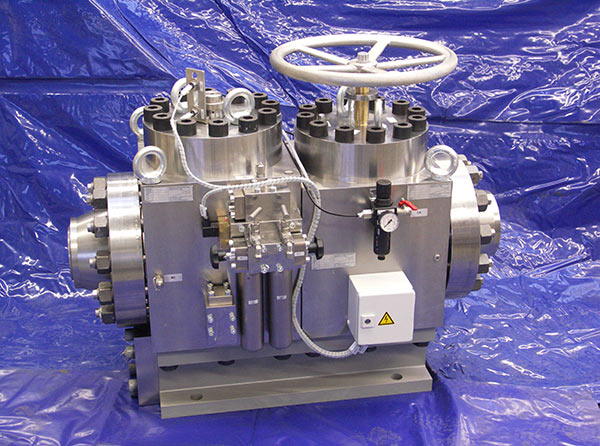

Memory port valve, for example, as
Single valve (switching valve)
Memory close valve unit (switching valve + check valve)

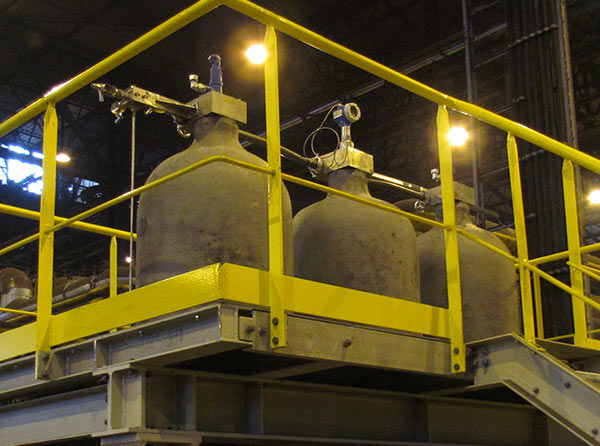

High-pressure reservoir, e.g. incl.
Radar level measurement

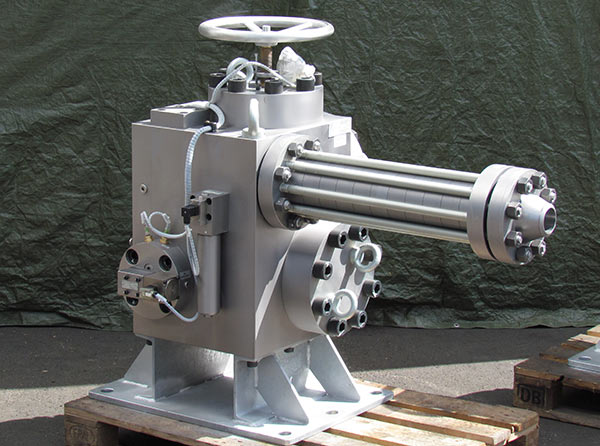

Pump circulation valve, for example, incl.
2/2 way check valve
manual shutoff valve
2/2 way switching valve
minimum quantities throttle

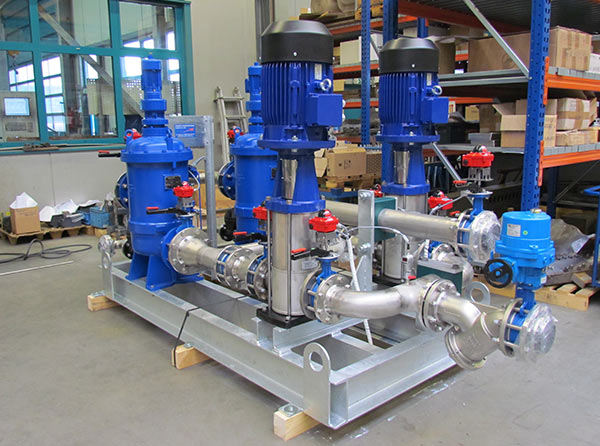

Other accessories, such as
Electrical control
High Pressure Pumps
Remove station
