THE EVERTZ GROUP은 철강 생산을 위한 뛰어난 기술력과 지속적인 개선을 통해 최고의 철강 및 알루미늄 엔지니어링 제품을 생산합니다. 자체 공장 및 제철소를 보유하고 철강 및 알루미늄 엔지니어링 및 플랜트 건설사업에 주력하고 있습니다.
MAGNET CRANE
For The Gentle Turning And Handling of Slabs
Magnet systems are the most efficient solution for the lifting and transport of ferromagnetic loads. The lifting and release of the load is faster and safer than with conventional slinging methods. The large area of contact prevents damage. Other advantages are greater safety and the fact that the stores can be more densely loaded.
Evertz - Magnet Applications Solingen, an Evertz Group company, has vast experience in the field of magnet application.
Starting with the smallest systems featuring tolerances in the range of one-hundredth of a millimeter, such as in the field of brake solenoids, we continue to the standard series of circular magnets and rectangular lifting magnets light, normal and heavy versions and special designs, which always require new structural solutions. Our constant quest for innovation is exemplified by the coil magnet we developed. It's able to carry up to 50 coils with horizontal and/or vertical coil axis. Another special solution is our newest development: a magnet made for "gentle" slab turning.
If our standard magnets don't provide the optimal fit for your configuration, we will make you a cost-free, non-binding proposal for magnet systems that are specifically designed to meet your needs. The items we supply cover magnets, custom-made power supplies (with emergency generation battery if required), cross beams conforming to the crane-handling standard, cable wheels, etc. In short, we offer a complete range of accessories needed to handle ferromagnetic loads safely, quickly and economically.
MAGNET APPLICATIONS
LIFTING MAGNETS
Lifting magnets for transportation of coils up to 50-weight:

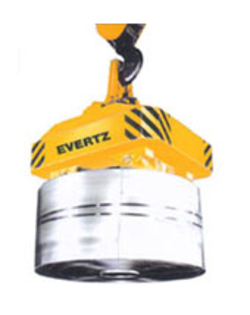

For transportation of coils with vertical coil axis
For transportation of coils with vertical coil axis
The large area of contact prevents damage to the coils.
Economical advantage through higher turnover and more densely loaded stores
For transportation of coils with horizontal coil axis
The large area of contact prevents damage to the coils.
Economical advantage through higher turnover and more densely loaded stores
For transportation of coils with horizontal and vertical coil axis
Safe transport of coils with horizontal and vertical coil axis using a magnet
The large area of contact prevents damage to the coils
Economical advantage through higher turnover and more densely loaded stores
Round magnets for the movement of ferro-magnetic bulk materials
Round magnets are suitable for all high-volume, continuous applications for the movement of ferro-magnetic bulk materials, including steel scrap, pig iron, broken castings, turnings, offcuts, etc.
Our standard series and two high-performance series, as well as a series especially designed for mobile machines such as excavators, with different weights for equal diameters, ensure the flexibility needed to take advantage of any existing crane installation.
The magnet housing consists of sturdy steel castings with high magnetic conductivity, which are tailored for rough work in the heavy-metal industry. That way we ensure the highest quality while guaranteeing the maximum magnet life for our customers.
Our magnets for scrap handling are constructed for impact excitation. That means the magnetic field penetrates deep into the scrap, ensuring the uptake of the largest possible load. The shutdown of the magnet automatically activates counter-excitation. This guarantees a minimum excite and de-excite time for the magnet system.
Our magnet systems are characterized by simple installation and minimal need for maintenance.

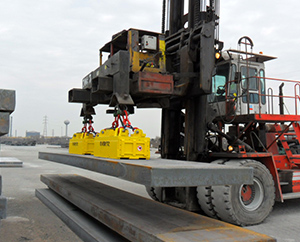

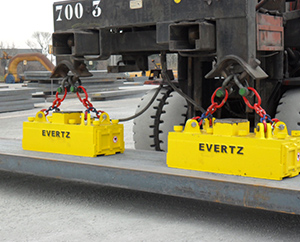

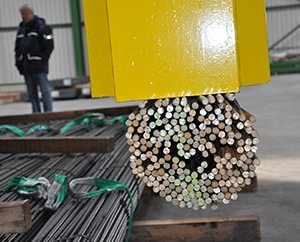

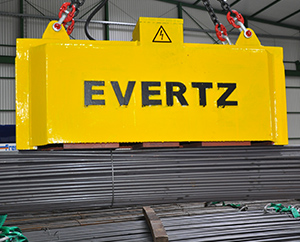

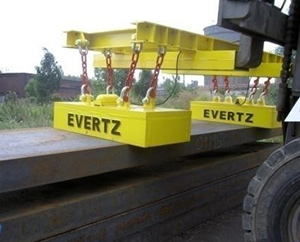

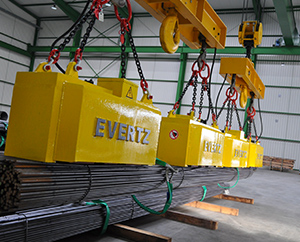

Rectangular magnets for transport of slabs and beams
Rectangular magnets are useful for the transport of slabs, ingots, billets, plates, pipes, steel bars, beam profiles and structural steel.
These magnets can be adapted in response to structural conditions that meet the customer's existing configuration and requirements.
Magnets for hot transport with special isolation, double cover plates and even a water-cooled, wire-wound coil are all part of our scope of supply.
Our magnet systems are characterized by simple installation and minumal need for maintenance.
Rectangular magnets for transport of slabs and beams
Rectangular magnets are useful for the transport of slabs, ingots, billets, plates, pipes, steel bars, beam profiles and structural steel.
These magnets can be adapted in response to structural conditions that meet the customer's existing configuration and requirements.
Magnets for hot transport with special isolation, double cover plates and even a water-cooled, wire-wound coil are all part of our scope of supply.
Our magnet systems are characterized by simple installation and minumal need for maintenance.
Conventional slab-turning magnets
The alternative to stationary and maintenance-intensive, hydraulic slab-turning devices
Safe transport und safe turning of slabs of every weight and size.
MAGNET EGIS
The highest safety category protects human lives !
Safety to a level previously unknown !
NEW SOLUTIONS FOR MAGNET TECHNOLOGY
Magnet systems are the most efficient solution for the lifting and transport of ferromagnetic loads. The lifting and release of the load is faster and safer than with conventional slinging methods. The large area of contact prevents damage. Other advantages are greater safety and the fact that the stores can be more densely loaded.
Evertz - Magnet Applications Solingen, an Evertz Group company, has vast experience in the field of magnet application.
Starting with the smallest systems featuring tolerances in the range of one-hundredth of a millimeter, such as in the field of brake solenoids, we continue to the standard series of circular magnets and rectangular lifting magnets light, normal and heavy versions and special designs, which always require new structural solutions. Our constant quest for innovation is exemplified by the coil magnet we developed. It's able to carry up to 50 coils with horizontal and/or vertical coil axis. Another special solution is our newest development: a magnet made for "gentle" slab turning.
If our standard magnets don't provide the optimal fit for your configuration, we will make you a cost-free, non-binding proposal for magnet systems that are specifically designed to meet your needs. The items we supply cover magnets, custom-made power supplies (with emergency generation battery if required), cross beams conforming to the crane-handling standard, cable wheels, etc. In short, we offer a complete range of accessories needed to handle ferromagnetic loads safely, quickly and economically.
MAINTENANCE AND REPAIR
Electrical and mechanical repair of our products and third-party brands
Modification of magnets changing the purpose of application
Cost-free delivery in Germany within 48 hours
Non-binding, cost-free quotation with itemized listing of the work to be performed
In a bottleneck situation, the appropriation of substitute magnets
Shortest repair times
Cost-free supply to the factory
Full warranty for components replaced by us
All welding at the magnets (i.e., the magnetic cross beams) is carried out by approved welders. To guarantee absolute safety (load handling attachment), we comply with the DIN 15 018 (crane-handling standard) and DIN 18 800 (highest verification of suitability for welding procedure). To guarantee absolute safety and quality, we have developed our own company standard.
We are eager to convince you of our performance and win you as a customer alongside the leading steel mills, trans-shipment companies and traders.
POWER SUPPLIES
Upon request we will supply you with a custom-made power supply and controls for your magnet. According to the application area of the magnets, power supplies and controls are equipped with the following options:
Impact excitation and counter-excitation Temperature monitoring of the magnets Controlled magnet circuit Load rectifier and emergency generator battery
MAGNETS TO LEND
In a bottleneck situation we're happy to lend you substitute magnets, as long as they fit into the existing configuration and if the right size is available.
We offer used lifting magnets as well. The core components of these magnets are new (.e.g., the coils) and we deliver them, like all Evertz magnets, with a two-year warranty.
